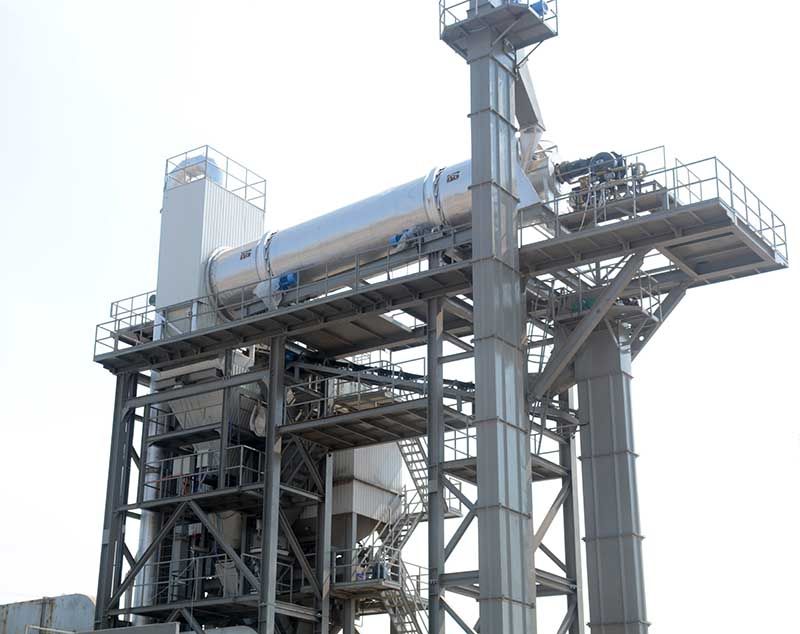

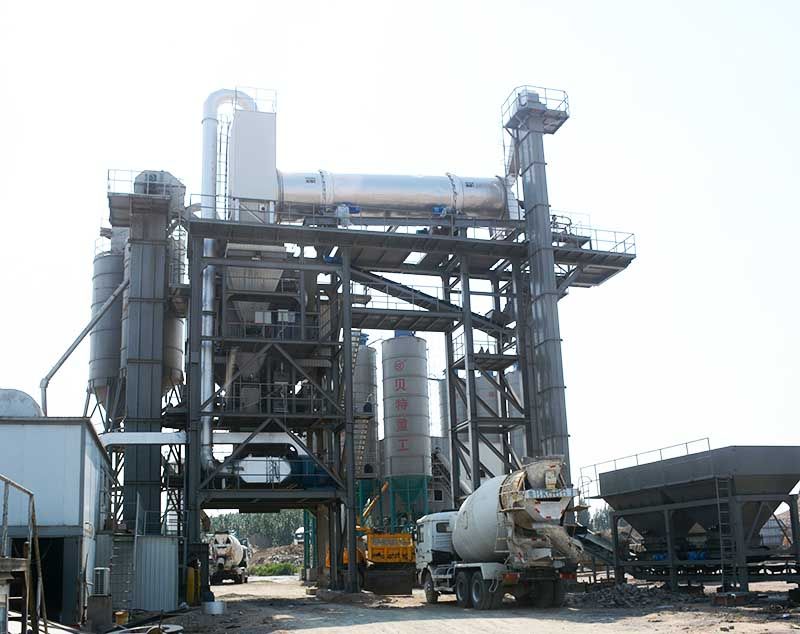

RZB1750 RAP Hot Recycling Plant

Rated capacity                                     :  150t/h

Hopper  quantity                                 :  10m3  * 2pcs

Drying drum for reclaimed material    :  Ф2.2 * 9.0m( L)

Hot bin  for  recycled material            :10m3

Installed power                                    :  160kw


Online Message

RAP Hot Recycling Plant


RAP hot recycling plant is to transport the old asphalt back to the mixing plant after digging from the pavement for centralized crushing in the plant. According to the quality requirements of different layers of the pavement, design the adding proportion of the old asphalt then mix it with new bitumen and aggregate in mixer according to a certain proportion to form the new mixture and obtain the excellent recycled asphalt and pave into recycled asphalt pavement.

    Compared with other recycling methods, the plant-mix recycled material is treated by heating, with high RAP mixing accuracy, the quality of the mixture is good, which could meet the quality requirements of the conventional mixture. The old material proportion could reach as high as 30% ~ 50%.


RZB1750 RAP Hot Recycling Plant Parameters


Model

RZB1750

Rated capacity(t/h)

150

Hopper quantity (pcs)

2x10m3

Elevator capacity(t/h)

160

Size of drying drum for reclaimed material Ф×L(m)

2.2x9.0

Hot bin volume for recyclaimed material (m3)

10

Burner output(MW)

10

Fuel

Light oil / Heavy oil / Natural gas

Waste gas treatment

Secondary combustion + bagfilter

Matched original model

LB3000/LB4000

Installed  power(kW)

160

Note: the parameters on this page are for reference only. The actual figures are subject to the actual configuration, and the interpretation right belongs to the manufacturer.
