Stabilized soil mixing plant
Stabilized soil mixing plant

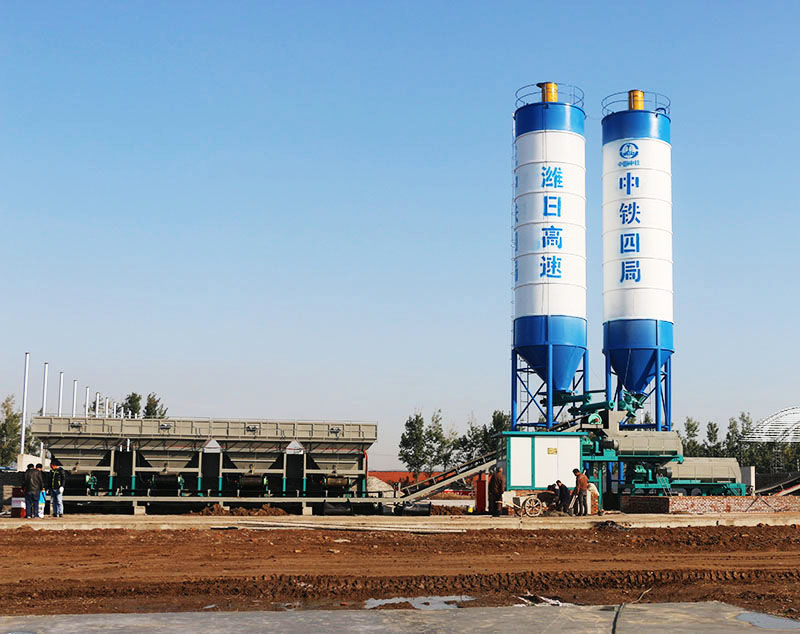

Stabilized soil mixing plant is the equipment for base construction of high-grade highway, urban road, square and airport. It can continuously mix and produce finished materials of lime fly ash gravel, lime stabilized soil and industrial waste stabilized soil with different gradations. Stabilized soil is used for base and subbase of highways at all levels.
Product features:
1.Our stabilized soil mixing plant is equipped with large-capacity twin-shaft mixer which stirs evenly and smoothly with high efficiency. Electronic measurement ensures high accuracy and reliable performance.
2.A variety of materials with different specification and quality could be mixed together to produce a wide range of mixtures.
3.The equipment is auto controlled by industrial computer which could store multiple formula and the control mode could be switched between manual and auto with easy operation and high reliability.
4.The modular design of the equipment makes “quick installation, fast moving and speed-up production”.
5.Excellent environment performance fully meets the needs of users for clean production.

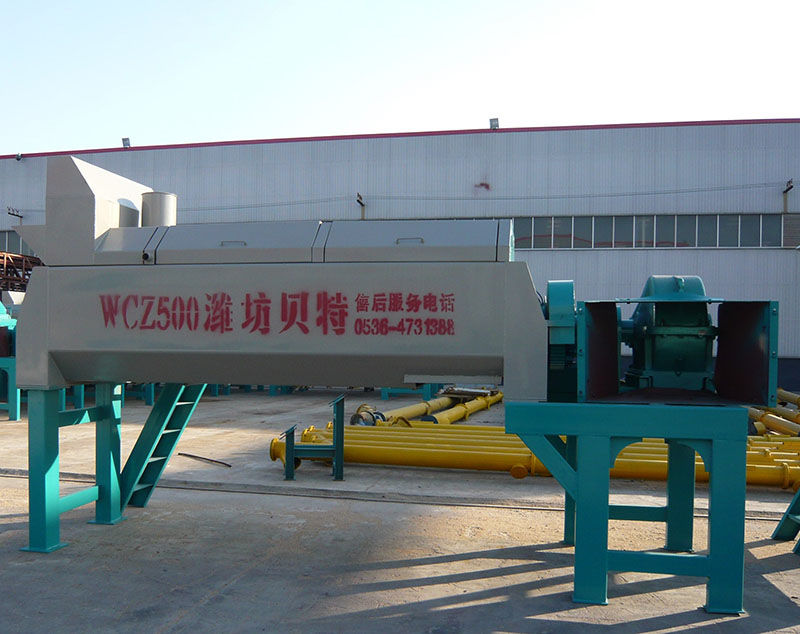

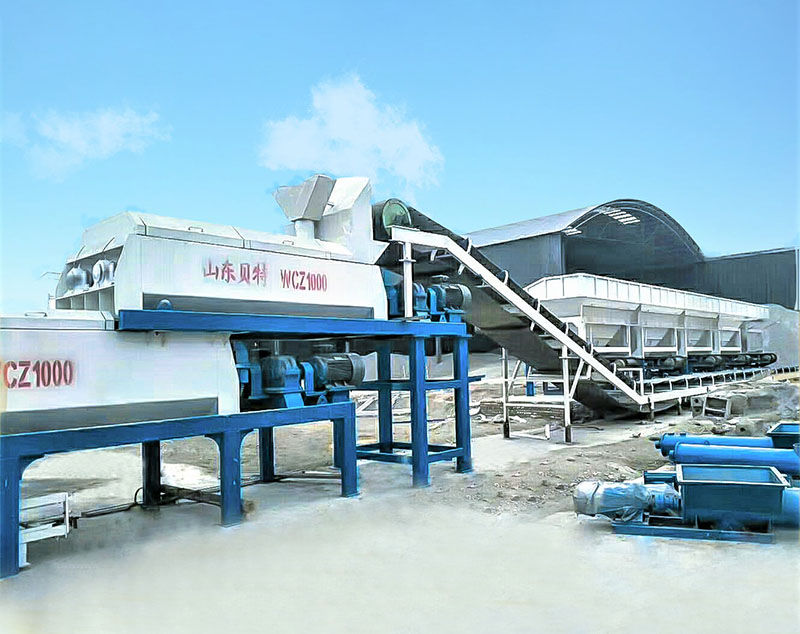

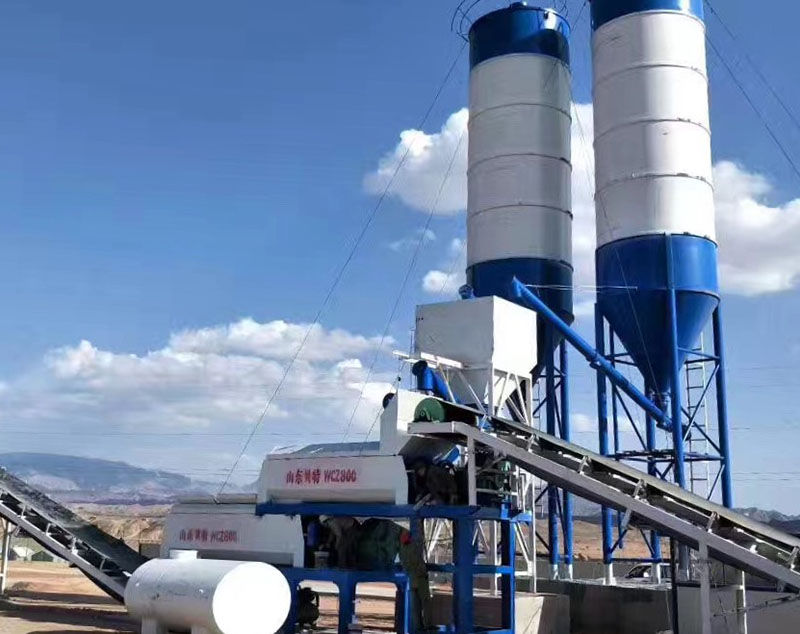

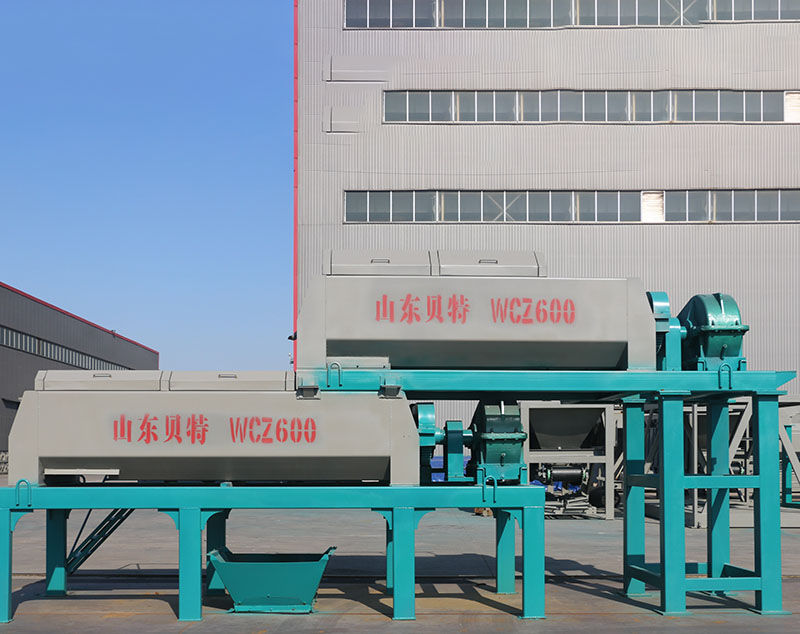

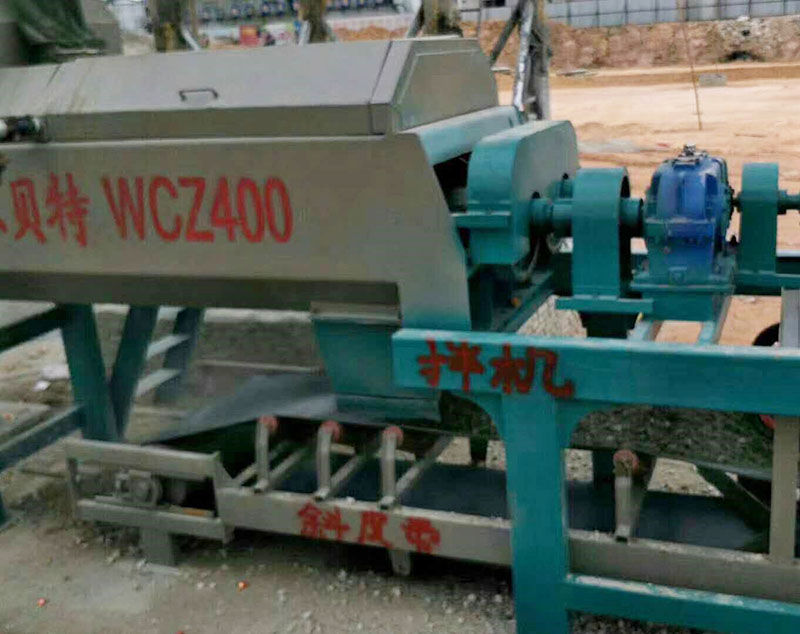

WCZ Series Stabilized soil mixing plant:
Model |
WCZ400 |
WCZ500 |
WCZ600 |
WCZ700 |
WCZ800 |
WCZ1000 |
Capacity |
400t/h |
500t/h |
600t/h |
700t/h |
800t/h |
1000t/h |
Installed power |
100kW |
123kW |
141kW |
165kW |
200kW |
276kW |
Metering accuracy |
±1 % |
±1 % |
±1 % |
±1 % |
±1 % |
±1 % |
Metering mode |
Continuous accumulative metering |
|
||||
Aggregate hopper |
4×10 m3 |
4×12 m3 |
4×12 m3 |
4×12 m3 |
4×12 m3 |
6×14 m3 |
Filler silo |
1×100 t |
1×100 t |
1×100 t |
1×100 t |
1×100 t |
2×100 t |
Water tank(optional) |
4m3 |
4m3 |
4m3 |
4m3 |
4m3 |
4m3 |
Mixing mode |
Horizontal twin-shaft continuous (alternative double mixer ) |
|
||||
Mixer motor power |
45kW |
2x30kW |
2x37kW |
2x45kW |
2x55kW |
2x75kW |
Conveying belt width |
800mm |
1000mm |
1000mm |
1200mm |
1200mm |
1200mm |
Storage hopper |
8m3 |
8m3 |
8m3 |
8m3 |
8m3 |
15m3 |
Discharging height |
3.7m |
3.7m |
3.7m |
3.7m |
3.7m |
3.8m |
Power standard |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Covering area |
15m×44m |
15m×46m |
15m×46m |
15m×47m |
16m×47m |
16m×60m |
Note: the parameters on this page are for reference only. The actual figures are subject to the actual configuration, and the interpretation right belongs to the manufacturer.
